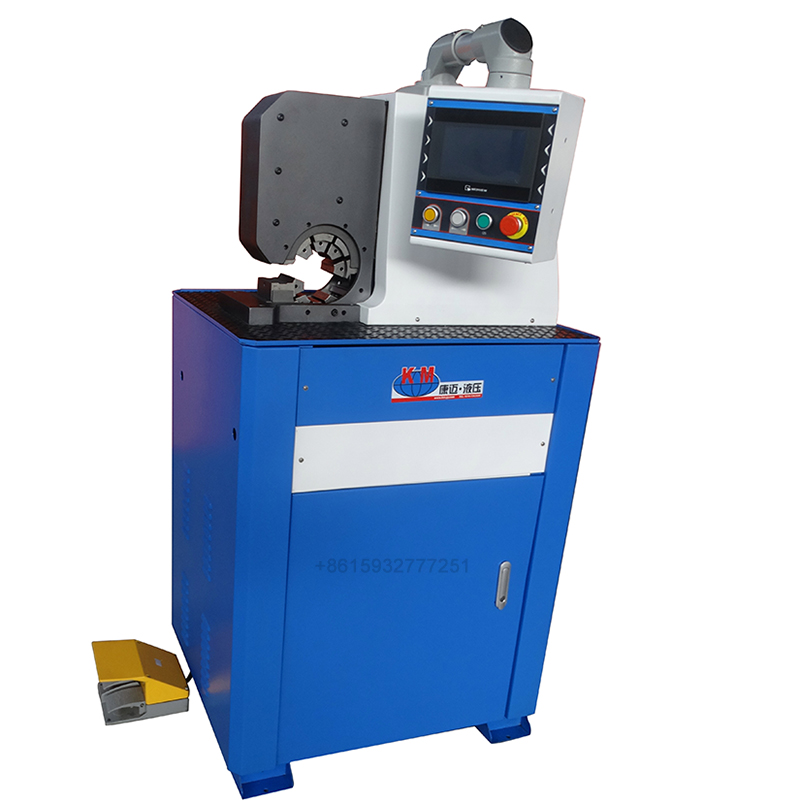

KM-81A-51 Supper Thin Crimping Machine

• Supper thin KM-81A-51  hose crimping machine Key Capability:


2" 4Wire Hydraulic hose capability

90 degree length fitting crimp capability

Cam lock crimp capability

Fast speed  and two speed crimp capability

• Dynamic technical sheet of Supper thin hose crimping machine KM-81A-51


 Shipping Space(mm)                 890*720*1590mm

Shipping Weight(Kg)            610Kg

Machine weight (without oil）    540Kg

Machine size(mm)                 790*580*950mm

Electrical data of Hose crimping machine KM-81A-51

1.  Supply (Volts/Amps)                             380/6.64

2.  Optional Volts                            110/ 220V/240/415V/440V

3.  Phase                                                    3Phase

4.  Optional phase                                     1Phase

5.  Power                                                     4Kw

6. Hertz                                                       50hz/60hz

Hydraulic data of Hose crimping machine KM-81A-51

Rated Pressure(Bar)                                    300

Pump    （L）                                           13

Reservoir Capity(Litres)                               98

Hydraulic oil                            Winter: L-HM32; Summer:L-HM46

◆How to choose the suitable good crimping machine for your work?

1.  Specify the size of crimping fittings.

2.  Clarify the connection form of the crimping fittings, whether there are long elbows, etc.

3.  Clarify the purpose of the clamping, whether it is for maintenance or large-scale production in the workshop

4.  Look at the technology and accessories of the crimping machine

5.  Check the production capacity, qualifications and pre-sales, in-sales and after-sales services of the crimping machine factory
